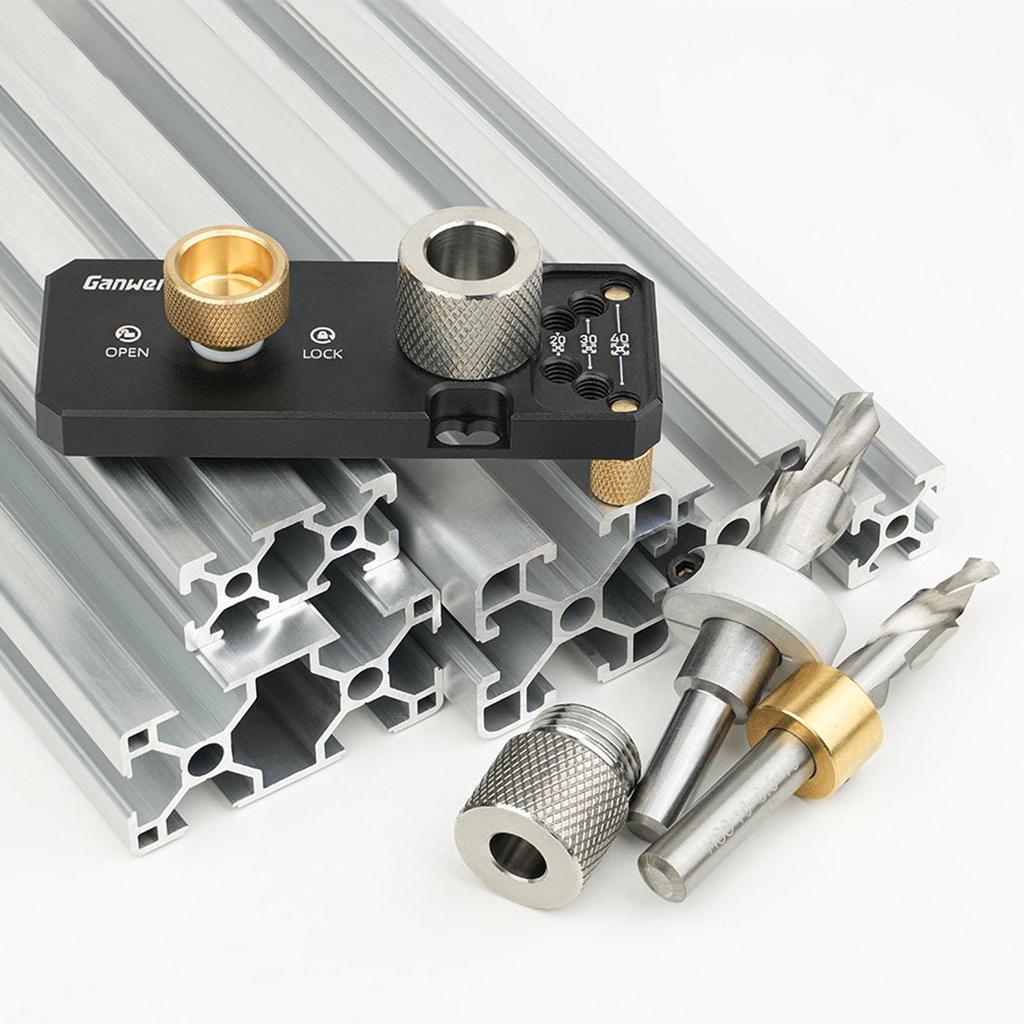

Aluminum Profile Punching Jig – Precision DIY Drilling Tool for 2020, 2040, 3030, 3060 Profiles with Accurate Positioning Support

Drill With Confidence—Perfect Holes, Every Time, On Every Profile

Take your aluminum profile projects to the next level with a Aluminum Profile Punching Jig built for exact drilling and clean alignment. Designed for 2020, 2040, 3030, and 3060 profiles, it ensures consistent hole placement and reduces the risk of misalignment or damage. Whether you're assembling frames, fixtures, or CNC builds, this tool brings professional accuracy to your DIY workflow.

Universal Fit for Popular Aluminum Profiles

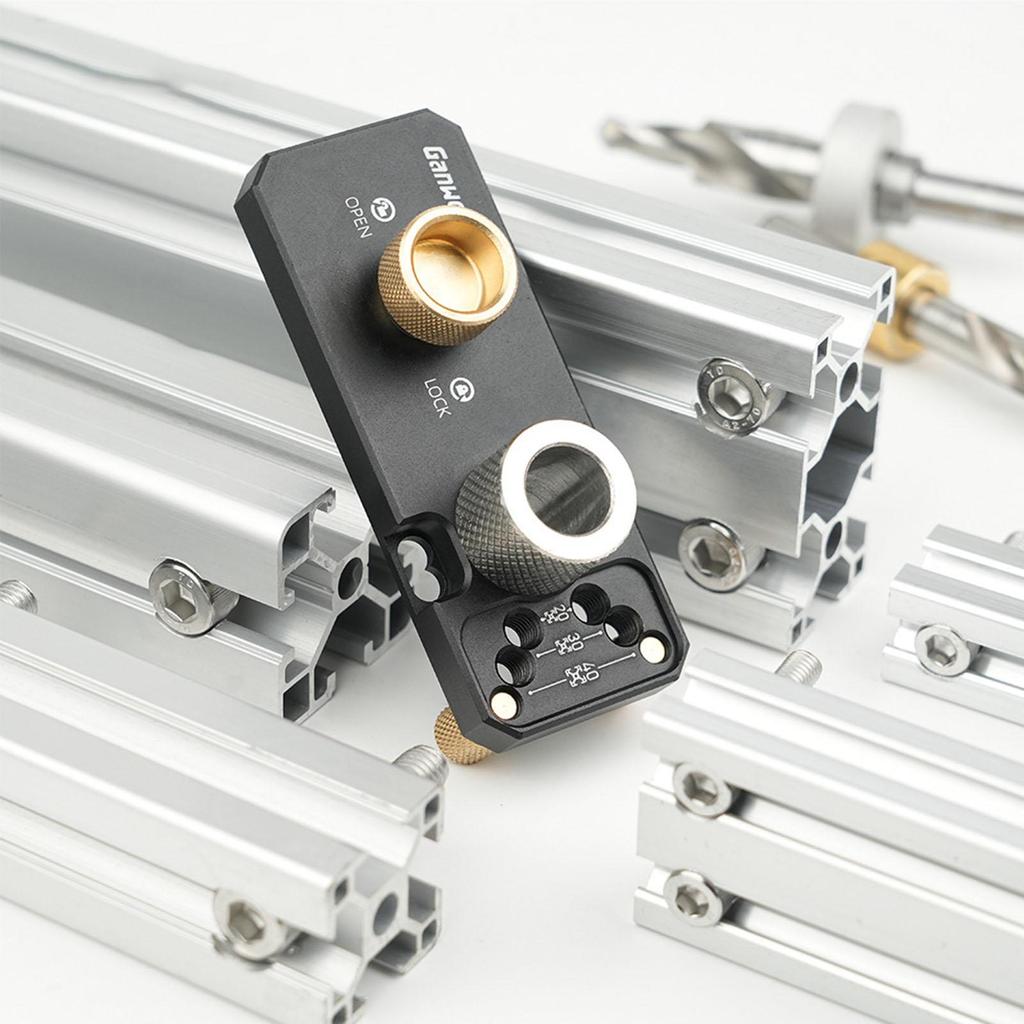

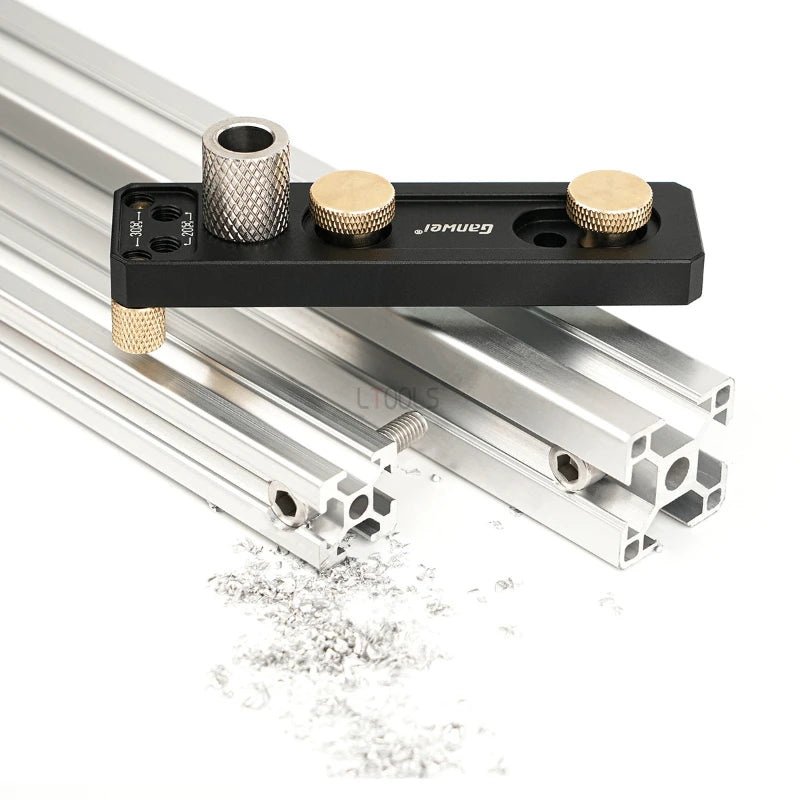

Compatible with the most commonly used aluminum profiles—2020, 2040, 3030, and 3060—this jig takes the guesswork out of marking and drilling. It locks securely in place, guiding your drill bit to the exact position every time. Whether you’re building enclosures or structural frames, this jig saves time while increasing overall build precision. It's the ideal tool for makers, machinists, and DIYers who work with extrusion systems.

Accurate Positioning for Flawless Results

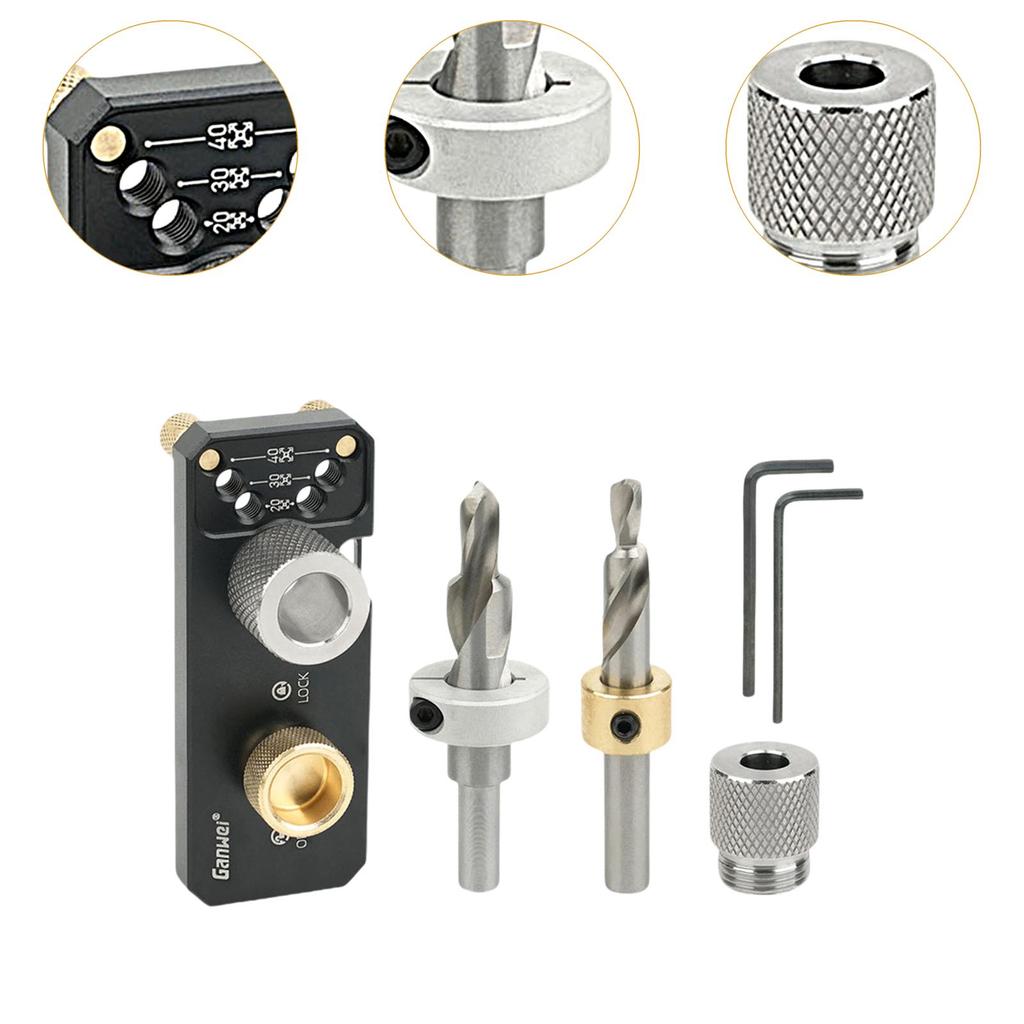

Built-in guides and measurement marks make it easy to align the jig for perfect drilling without shifting. The tight fit prevents wobble or movement, allowing for clean, repeatable holes with minimal margin of error. This reduces the need for re-drilling or patching mistakes, which can weaken the material. Whether you're creating end connections or mid-profile holes, you’ll get pro-level precision with every use.

Durable Aluminum Construction for Lasting Use

Made from high-grade aluminum alloy, the jig is both lightweight and tough enough to withstand repeated use in demanding environments. It resists wear and deformation, ensuring long-term accuracy even after dozens of projects. The anodized finish adds corrosion resistance, keeping it looking and performing like new. Compact and easy to transport, it’s the perfect addition to any workshop or tool kit.

Specifications:

Material: Aluminum Alloy

Color: Black

Size: ‎6.46 inches x 5.67 inches x 2.24 inches

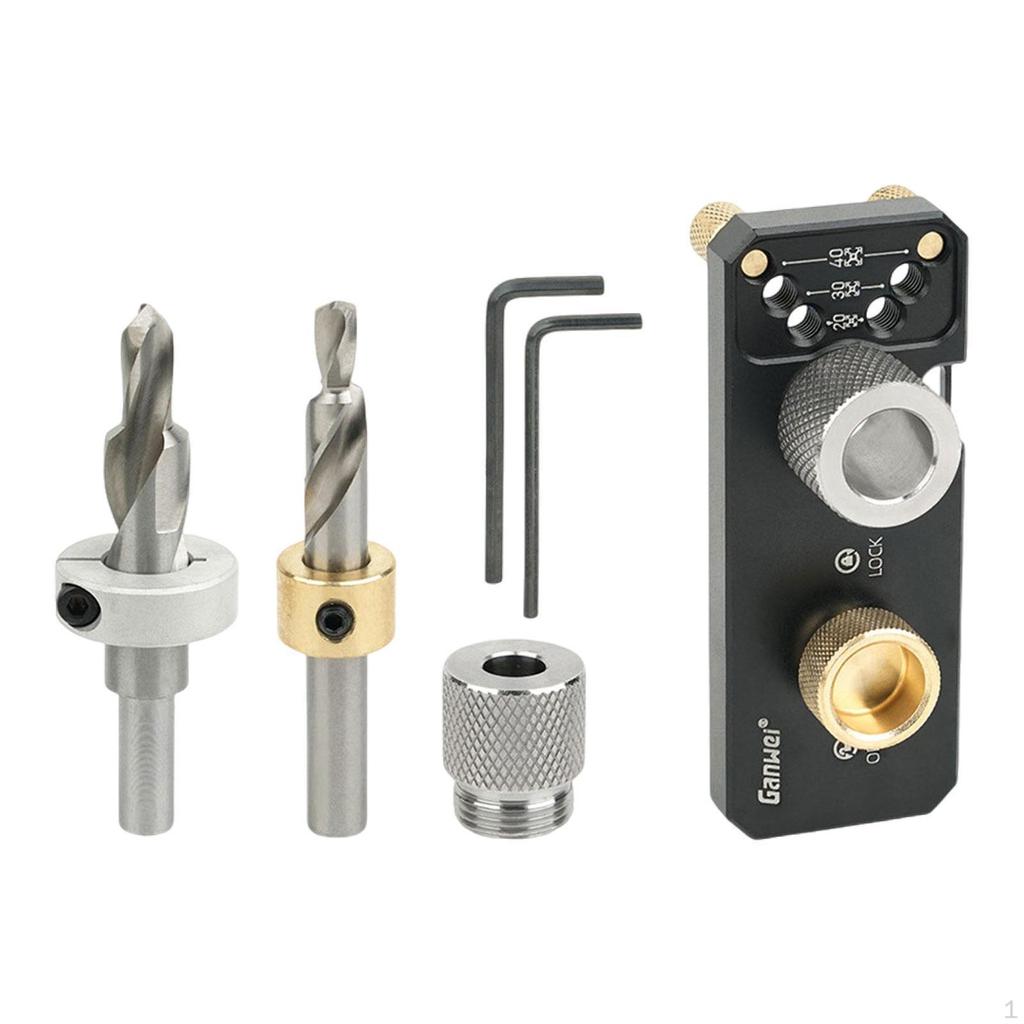

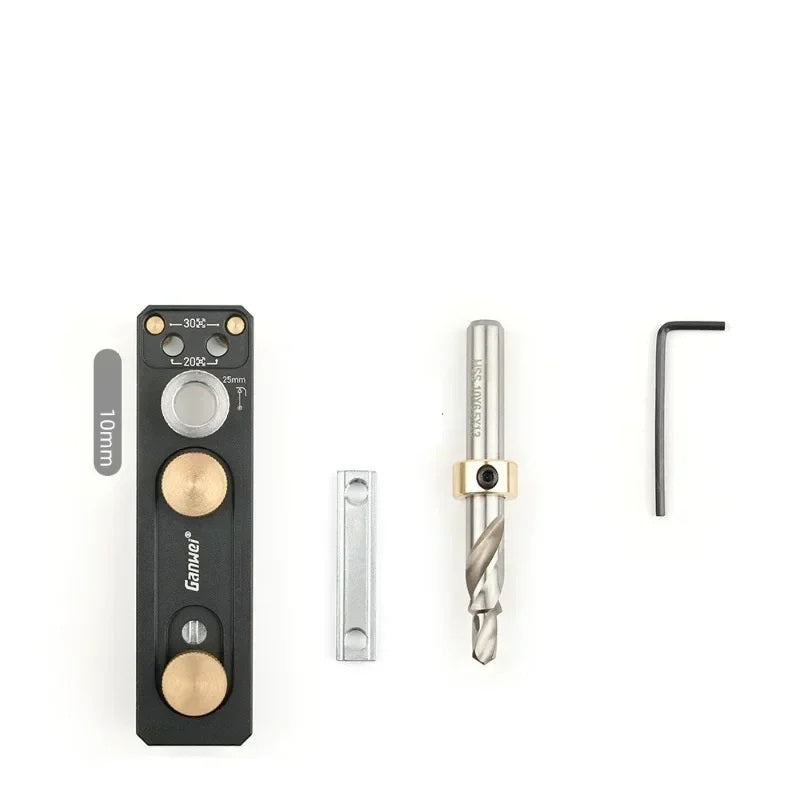

Package Includes:

1 x Aluminum Profile Punching Jig
